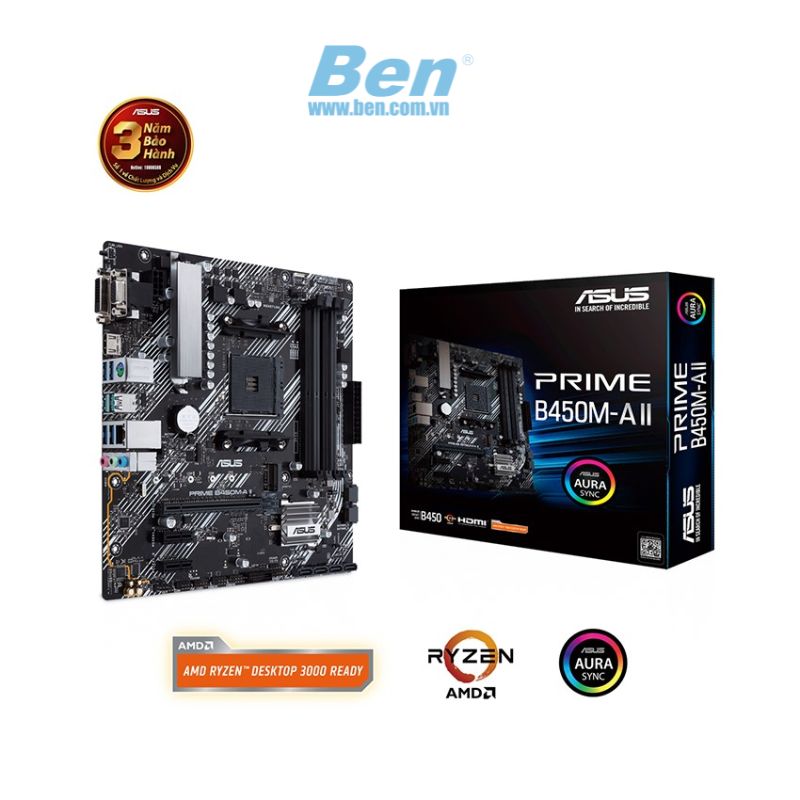

Bo mạch chủ Mainboard Asus Prime B450M-A II (AMD B450/ Socket AM4/ M-ATX/ 4 khe ram/ DDR4
1 /
Bo mạch chủ Mainboard Asus Prime B450M-A II (AMD B450/ Socket AM4/ M-ATX/ 4 khe ram/ DDR4
Thương hiệu: Asus
Socket: AM4
Khe RAM tối đa: 4
Chipset : B450
Kích thước Mainboard: ATX

👉 Giá ưu đãi đặc biệt
Đăng ký ngay để nhận ưu đãi riêng cho bạn nhé!

Bo mạch chủ Mainboard Asus Prime B450M-A II (AMD B450/ Socket AM4/ M-ATX/ 4 khe ram/ DDR4

Mã sản phẩm: 309800

0.0 Xem đánh giá

Chính sách bán hàng

- Uy tín hơn 22 năm xây dựng và phát triển
- Sản phẩm chính hãng 100%
- Mua trả góp lãi suất 0%
- Bán hàng online toàn quốc
- Bảo hành chính hãng
- Bảo hành tận nơi cho doanh nghiệp
- Giá luôn cạnh tranh nhất thị trường

Chính sách giao hàng

- Giao hàng nhanh chóng
- Giao hàng trước trả tiền sau COD
- Miễn phí giao hàng (bán kính 20km)
- Giao hàng và lắp đặt từ 8h30 - 19h00 hàng ngày, từ thứ 2 đến thứ 7 hàng tuần.

Card đồ họa Asus ROG Astral GeForce RTX 5090 32GB OC Edition (GDDR7/ 512 bit)
Nguồn máy tính Asus TUF Gaming 1200G - 1200W PCIE5.0 (80 Plus Gold/ Full-Modular/ ATX/ Đen)
Mainboard Asus TUF Gaming Z790-PLUS WIFI (Intel Z790/ Socket 1700/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
Card đồ họa Asus Phoenix GeForce GT 1030 OC 2GB (DDR5/ 64 bit)
Card đồ họa Asus Phoenix GeForce GT 1030 OC 2GB (DDR5/ 64 bit)
2.299.000 ₫
2.090.000 ₫ -9 %
Đặt trước
Máy tính để bàn All-in-One Asus V440VAT ( WPD042W ) | White | Intel Core i5-13420H | RAM 8GB | 512GB SSD | Intel Graphics | 23.8 inch FHD cảm ứng | K & M | WL + BT | Win11 Home | 2Yrs
Máy tính để bàn All-in-One Asus V440VAK ( WPC163W ) | White | Intel Core i3-1315U | RAM 8GB | 512GB SSD | Intel Graphics | 23.8 inch FHD | K & M | WL + BT | Win11 Home | 2Yrs
Sạc Asus 180W 20V-9.0A chân kim to
Sạc Asus 180W 20V-9.0A chân kim to
Liên hệ
Đặt trước
Laptop Asus Vivobook S16 OLED ( S5606CA-RI115WS ) | Xanh | Intel Core Ultra 7 255H | RAM 32GB | 1TB SSD | Intel Arc Graphics | 16 inch 3K OLED 120Hz | Vỏ nhôm | Win11 Home + Office 24 | 2Yrs
Màn hình gaming Asus ( VY249HGR ) | 23.8Inch | Full HD | 1ms | 120Hz | 250cd | m2 | IPS | 3Yrs
Laptop Asus Vivobook X1404VA ( NK394W ) | Silver | Intel Core i3-1315U | RAM 8GB | 512GB SSD | Intel UHD Graphics | 14 inch FHD IPS 60Hz | Win11 Home SL | 2Yrs

Thông số kỹ thuật

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
* Refer to www.asus.com for CPU support list
Chipset AMD B450



Bộ nhớ

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3533(O.C) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.

Cổng xuất hình

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
1  x D-Sub
1  x DVI-D
1  x HDMI 2.0b
*Graphics specifications may vary between CPU types.



Khe cắm mở rộng

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1





Lưu trữ

Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1
Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Mạng LAN

Realtek RTL8111H 1Gb Ethernet
TUF LANGuard



Âm thanh

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors



Cổng USB

Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)









Phần mềm

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode







Tính năng đặc biệt

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB header
ASUS Lighting Control



Cổng I/O phía sau

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack Button(s)





Cổng I/O phía trong

1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header



Phụ kiện

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Hệ điều hành

Windows® 10 64-bit
Windows® 7 64-bit *2

Dạng thiết kế

mATX Form Factor
9.6  inch x 9.5  inch ( 24.4  cm x 24 cm )

Lưu ý

1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
